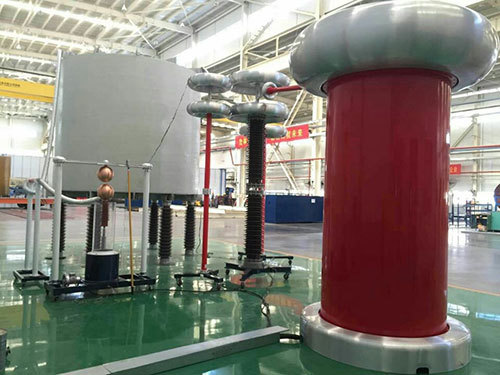

Wechselspannungsprufsystem

Wechselspannungsprufsystem
Wechselspannungsprufsystem
Product Code : 12
Product Description

Features & Benefits:

  • Compact dimensions with minimum space requirements;
  • Over voltage protection and over current protection;
  • Protection of the system during flashover of the test objects;
  • Low PD noise level to enable sensitive PD measurement at the test object;
  • Emergency button stop at the control desk;
  • Automatic control or manual control for selection

Applications:



AC voltage withstand test and partial discharge test of below products:
  • 1.Insulators in dry, wet or polluted conditions
  • 2.Medium and high voltage Switchgear
  • 3.Instrument transformer, GIS, VT, CT
  • 4.Circuit breaker
  • 5.Power and distribution transformers

Technical Parameters:

Model No.

Maximum Output Voltage

Rated Output Current

PD Level

(kV)

(A)

JXAC-20/100

100

0.2

<3pC

JXAC-50/100

100

0.5

<3pC

JXAC-100/200

200

0.2

<3pC

JXAC-100/200

200

0.5

<3pC

JXAC-200/200

200

1

<3pC

JXAC-50/250

250

0.2

<3pC

JXAC-250/250

250

1

<3pC

JXAC-500/250

250

2

<3pC

JXAC-60/300

300

0.2

<3pC

JXAC-150/300

300

0.5

<3pC

JXAC-300/300

300

1

<3pC

JXAC-80/400

400

0.2

<3pC

JXAC-200/400

400

0.5

<3pC

JXAC-400/400

400

1

<5pC

JXAC-100/250*2

500

0.2

<5pC

JXAC-250/250*2

500

0.5

<5pC

JXAC-500/250*2

500

1

<5pC

JXAC-300/300*2

600

0.5

<5pC

JXAC-600/300*2

600

1

<5pC

JXAC-350/350*2

700

0.5

<5pC

JXAC-700/350*2

700

1

<5pC

JXAC-800/400*2

800

1

<5pC

Standards:

IEC 60060, IEC 60060-2, IEC60502-1, IEC60502-2, IEC60076-3, IEC60076-4, and other IEC standards
