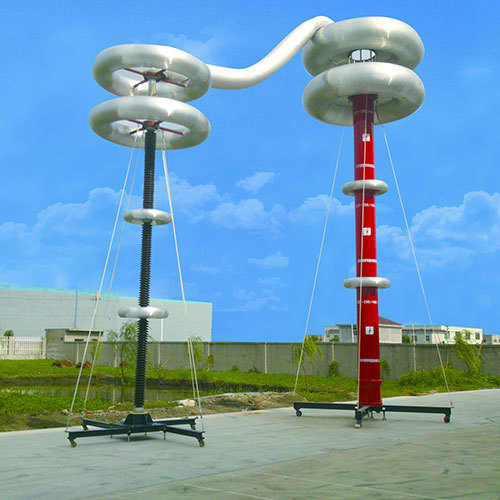

Variable Frequency AC Resonant Test Systems

Variable Frequency AC Resonant Test Systems
Variable Frequency AC Resonant Test Systems
Send Inquiry
Product Code : 16
Product Description

We are a prime manufacturer and supplier of Variable Frequency AC Resonant Test Systems, which are mostly utilized for Alternative Current withstand voltage test of broad capacitive test devices on site. The test objects comprises GIS, power cables, SF6 circuit breakers and so on. With perfect tuning capacitor, the frequency spectrum can be from 20Hz to 300Hz. This type of Variable Frequency AC Resonant Test Systems are best suitable for partial discharge test of coupling capacitors, instrument transformers and metal oxide surge arresters with determined voltage under 1000kV.

Features & Benefits:

  • High quality factor or High Q value
  • Compact design with lightweight
  • Changeable frequency array from 20Hz to 300Hz
  • Low power demand owing to supreme quality factor, the input power demand is just 1/Q of the output power capacity
  • Lowest partial discharge value
  • No transient over voltage during flash over of the test object

Applications:

  • Power cable testing;
  • Onsite GIS testing;

Standards: IEC60060
