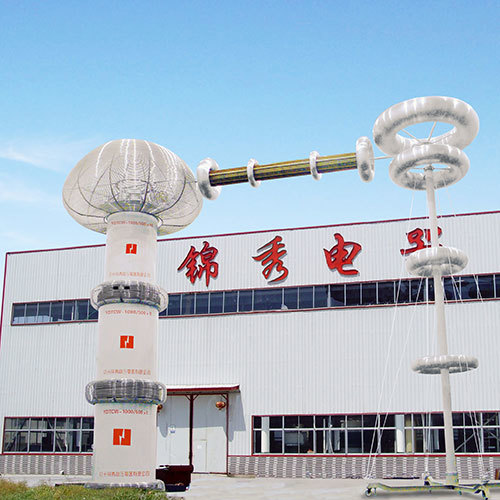

Test Transformer

Test Transformer
Test Transformer
Product Code : 14
Product Description

We are an active manufacturer and supplier of Test Transformer, which is extensively utilized in research institutions, electric power department, electric devices manufacturers and universities. It is suitable for the partial discharge test an AC voltage endure test of various apparatus. The Test Transformer is manufacturing using varied components such as Switchgear cabinet, Voltage regulator or regulating transformer, Power noise filter, Cylinder test transformer, Protective resistor, Capacitive voltage divider or Coupling capacitor, Automatic control system and Measurement system

Features and Benefits:

  • Compact dimensions with minimum space requirements;
  • 2) Over voltage protection and over current protection;
  • 3) Protection of the system during flashover of the test objects;
  • 4) Low PD noise level to enable sensitive PD measurement at the test object;
  • 5) Emergency button stop at the control desk;
  • 6) Automatic control or manual control for selection

Applications:

AC voltage withstand test as well as partial discharge test of below products:

  • Insulators in dry, wet or polluted conditions
  • Instrument transformer, GIS, VT, CT
  • Medium and high voltage Switchgear
  • Circuit breaker
  • Power XLPE cables
  • Power and distribution transformers
  • Bushings
  • Electrical panel
  • Reactors and Capacitors

Technical Parameters:

Model No.

Maximum Output Voltage

Rated Output Current

PD Level

(kV)

(A)

JXAC-20/100

100

0.2

<3pC

JXAC-50/100

100

0.5

<3pC

JXAC-100/200

200

0.2

<3pC

JXAC-100/200

200

0.5

<3pC

JXAC-200/200

200

1

<3pC

JXAC-50/250

250

0.2

<3pC

JXAC-250/250

250

1

<3pC

JXAC-500/250

250

2

<3pC

JXAC-60/300

300

0.2

<3pC

JXAC-150/300

300

0.5

<3pC

JXAC-300/300

300

1

<3pC

JXAC-80/400

400

0.2

<3pC

JXAC-200/400

400

0.5

<3pC

JXAC-400/400

400

1

<5pC

JXAC-100/250*2

500

0.2

<5pC

JXAC-250/250*2

500

0.5

<5pC

JXAC-500/250*2

500

1

<5pC

JXAC-300/300*2

600

0.5

<5pC

JXAC-600/300*2

600

1

<5pC

JXAC-350/350*2

700

0.5

<5pC

JXAC-700/350*2

700

1

<5pC

JXAC-800/400*2

800

1

<5pC
