Impulse Voltage Divider

Impulse Voltage Divider
Impulse Voltage Divider
Product Code : 08
Product Description

We are the largest manufacturer and supplier of Impulse Voltage Divider, which is ideal to be utilized for the measurement tail chopped lightning, high voltage full and full switching impulses. Provided with an adequate extra secondary component, it can also be utilized for alternating voltage measurements. There are wheels at the bottom for convenient movement, and also has corona rings at the top. At par with IEC60060 standards, this is designed and developed by domain experts. Besides, we offer the Impulse Voltage Divider in different model no. and technical specifications at competitive prices.

Applications:

Impulse voltage divider is used to measure high voltage full and tail chopped lightning and full switching impulses. Provided with an adequate additional secondary part, it can also be used for alternating voltage measurements.

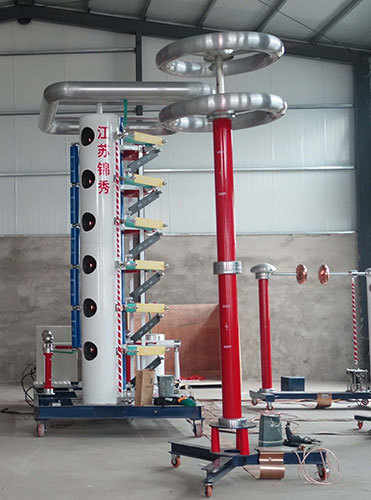

It has wheels at the bottom for easy movement and corona rings at the top.

Standards: IEC60060

Technical Parameters:



Model No

Rated Voltage L.I. 1.2/50μs kV

Rated Voltage S.I. 250/2500μs kV

Rated Capacitance pF

JXVD-400/300

300

240

300~600

JXVD-400/400

400

320

JXVD-400/600

600

480

JXVD-300/800

800

640

JXVD-300/900

900

720

JXVD-300/1200

1200

960

JXVD-300/1600

1600

1280

300~1000

JXVD-300/1800

1800

1440

JXVD-300/2400

2400

1920

JXVD-400/3000

3000

2400

JXVD-400/3600

3600

2880

 Our Projects :
