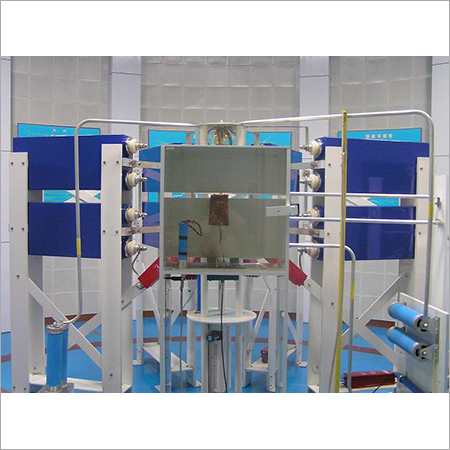

Impulse Current Test System-Sp Type

Impulse Current Test System-Sp Type
Impulse Current Test System-Sp Type
Send Inquiry
Product Code : 13
Product Description
Impulse Current Test System-Sp Type is an essential system which is used to verify performance of different lighting safety systems, lighting rod and surge protection device. This testing equipment is capable of producing 10/350μs or 8/20μs impulse current.
Features and Benefits:
  • PLC based self regulated mechanism has contributed to its user friendly design.
  • Its triggering section is controlled by pulse amplifier for maintaining accuracy in operation.
  • This system can alter its polarity mechanically.
  • Castor oil has been used as the fluid based insulation element of the capacitor of this impulse current testing system. This oil can easily integrate with different working conditions. This impulse testing equipment has long working life and low thermal conductivity level.
  • This testing system consists of earthing rod, earthing protection system, gate interlocking function for its operator, safety accessories and emergency button.
  • The resistors of this testing system can produce minimal electromotive force and these can be attached via plug.
  • This testing system ensures reliable and smooth connection between control system and measurement system.
  • The offered testing apparatus is equipped with touch screen controlled panel, PLC module based console of Japan Mitsubishi brand and computer screen. The optical fiber of this system guarantees about its reliable operation.
  • It uses Pearson current monitor sourced from the USA for calculating peak current. Its oscilloscope of Tektronix brand is capable of registering generated waveform.
Application:
  • Lighting rod
  • Varistors, surge protection device, GDT
  • Different types of lightning protection system
  • Accessories used as parts of lightning inhibition systems
Technical parameters:
  • The offered testing apparatus consists of below mentioned parts:
  • Measurement section
  • High voltage charging unit
  • Mechanical earthing system
  • Enclosure for product that needs to be tested
  • Central spark gap
  • Generator for producing impulse current
  • Available Options
  • Residual voltage divider
  • Oscilloscope
  • DC/AC power source for performing duty test
  • Decoupling or coupling unit
  • Pearson coil or current shunt

Model No

Shapes

Current Peak

JXIC60S

8/20μs

60kA±10%

JXIC100S

8/20μs

100kA±10%

JXIC150S

8/20μs

150kA±10%

JXIC200S

8/20μs

200kA±10%

JXIC25H

10/350μs

25kA±10%

JXIC50H

10/350μs

50kA±10%

JXIC100H

10/350μs

100kA±10%

JXIC100D

8/20μs

100kA±10%

10/350μs

20kA±10%

JXIC150D

8/20μs

150kA±10%

10/350μs

30kA±10%

JXIC200D

8/20μs

200kA±10%

10/350μs

35kA±10%
