Impulse Current Test System

Impulse Current Test System
Impulse Current Test System
Send Inquiry
Product Code : 17
Product Description

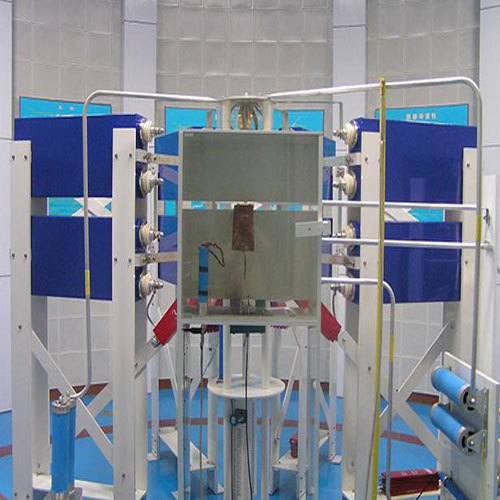

We are manufacturer and supplier of SP type Impulse Current Test System, which produces 8/20μs or 10/350μs impulse current waveforms. This type of test system can be utilized for testing varistors, GDT, lightning rod, SPD and varied other lightning protection apparatuses. This is made up of HV charging unit, Central spark gap, Impulse current generator, Housing of test object, Automatic control system, Automatic earthing system and Measurement system. Impulse Current Test System is designed in conformity to the varied in international standards like IEC 61643-11, IEC62561-2, UL1449, NFC-17-102 and IEC62561-1.

SP type impulse current test system can generate 8/20μs or 10/350μs impulse current waveforms. The systems can be used to test SPD, lightning rod and other lightning protection devices.

Features & Benefits:



  • Consists of pulse amplifier regulated triggering section with dependable operation
  • PLC controlled automatic operation with easy to comprehend mechanism
  • Mechanical polarity changing function
  • Equipped with emergency button, earthing rod, gate interlock system and earthing prevention arrangement for the safety of this system and its operator as well
  • Castor oil based insulation arrangement to integrate with different working conditions. Impulse capacitor of this testing system generates minimal electromotive force and it is acknowledged for its superior quality and long working life.
  • Error free connection facility between control system and measurement section
  • Resistors that are used to shape waveform are known for their minimal inductance level and these can be attached via plug.
  • Equipped with PLC regulated console of Mitsubishi brand of Japan, computer monitor and touch controlled screen panel. It also uses optical fiber to maintain precision of work.
  • Equipped with Pearson current monitor obtained from the USA for assessing peak current and oscilloscope of Tektronix brand for registering generated wave forms



Standards: IEC 61643-11,NFC-17-102, IEC62561-1,IEC62561-2, UL1449

Available Options

  • SPD, varistors, GDT;
  • Lightning rod;
  • Lightning protection system components;
  • Other lightning protection devices.
  • AC or DC power source for operating duty test
  • Oscilloscope
  • Coupling/decoupling unit
  • Residual voltage divider
  • Current shunt/Pearson coil
The test system includes the following main components:
  • HV charging unit
  • Impulse current generator
  • Central spark gap
  • Housing of test object
  • Automatic earthing system
  • Automatic control system
  • Measurement system

Technical Parameters:

Model No

Shapes

Current Peak

JXIC60S

8/20μs

60kA±10%

JXIC100S

8/20μs

100kA±10%

JXIC150S

8/20μs

150kA±10%

JXIC200S

8/20μs

200kA±10%

JXIC25H

10/350μs

25kA±10%

JXIC50H

10/350μs

50kA±10%

JXIC100H

10/350μs

100kA±10%

JXIC100D

8/20μs

100kA±10%

10/350μs

20kA±10%

JXIC150D

8/20μs

150kA±10%

10/350μs

30kA±10%

JXIC200D

8/20μs

200kA±10%

10/350μs

35kA±10%
