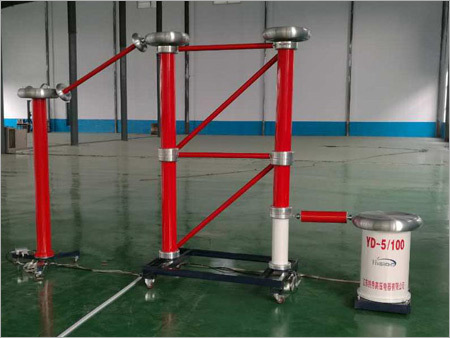

HV DC Generator

HV DC Generator
HV DC Generator
Product Code : 09
Product Description

Among the foremost entity of this domain, we are entitled as the leading supplier and manufacturer of HV DC Generator. This type of reactor is ideal to be utilized to output Direct Current (DC) at power factor in power frequency 50 or 60Hz. This can be used for testing the surge arresters and varied other insulation materials. Qualitative raw material in the production process is utilized by our experts of our high voltage transformer to ensure effectiveness and durability. Our array of HV DC Generator offers low temperature and is energy efficient rise for longer life and energy savings.

DC generator is used to output DC at power frequency, 50Hz or 60Hz.
It can test the surge arresters and other insulation materials.

Features & Benefits:

  • Ripple factor less than 3%;
  • Automatic polarity change;
  • Manual control or automatic control for selection;

Applications:

  1. Surge arresters;
  2. Cable & cable accessories;
  3. Other insulation materials.

Technical Specifications:



Model No.

Ripple Factor

Maximum Output Voltage

Output Current


(kV)

(mA)

JXDC-50/10

<3%

50

10

JXDC-120/15

<3%

120

15

JXDC-250/10

<3%

250

10

JXDC-300/10

<3%

300

10

JXDC-400/10

<3%

400

10

We can do custom made.
