Grading Capacitor

Grading Capacitor
Grading Capacitor
Product Code : 14
Product Description

We are the foremost manufacturer and supplier of optimum quality Grading Capacitor. These capacitors are designed by our trained experts utilizing advanced techniques and excellent grade components in compliance with set industry parameter. Impulse capacitors are widely used as the power energy for the high voltage and high current devices, such as impulse current generator, impulse voltage generator, repetition impulse generator, oscillation circuit test system, pulse power, etc. Our prestigious patrons can avail this Grading Capacitor from us at reasonable price.

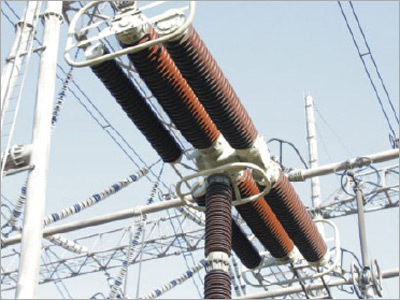

Applications: It is connected in parallel to the HV AC circuit breaker's fracture in order to ensure the steady distribution of the voltage and decrease the recovery voltage amplitude.

Features & Benefits:

  • Capacitance:1000pF~2000pF;
  • Rated voltage: 72.5kV ~250kV;
  • Capacitance deviation: < + 5% at Un;
  • PD level: 5pC at defined test conditions;
  • Discharge performance: Capacitor shall endure short-circuit discharge at Un;
  • Horizontal, inclined or vertical installation;
  • Sheath: Porcelain or silicon-rubber

Technical Specifications:

Model No

Rated Voltage 50/60Hz (kV)

Rated Capacitance (pF)

Dry arc distance (mm)

Creepage distance (mm)

JXAF250-2000

250

2000

2100

≥8000

JXAF-250-1000

250

1000

1900

≥7000

JXAF-190-1200A

190

1200

2026

≥8000

JXAF-190-1200B

190

1200

1998

≥6875
