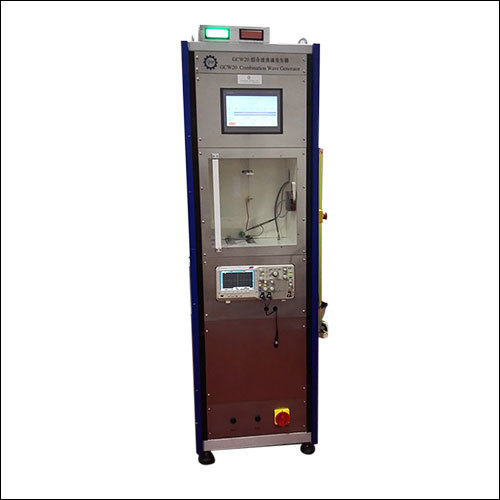

Combination Wave Generator

Combination Wave Generator
Combination Wave Generator
Product Code : 08
Product Description

Our domain expertise has enabled us to supply and manufacture quality collection of Combination Wave Generator. Combination wave generator can be utilized to generate impulse of exponential shapes to perform high energy surge tests. With additional impulse modules, it can output 8/20μs and 10/350μs. These are designed utilizing finest quality raw material which we sourced from the trusted experts of the industry to meet the patron's requirements. This combination wave generator can be obtained from us at reasonable prices in market.

Features & Benefits:

  • Different impulse modules for up gradation in the future, easy for operation
  • Peak voltage and current monitoring
  • Automatic polarity switching
  • Integrated large test cabinet with dimension of 40x40x30cm
  • Easy operation and maintenance
  • Open structure for expand waveforms
  • Liquid insulation in the impulse capacitors is made of castor oil which offers optimal environmental compatibility (no PCBs). The impulse capacitors have very low inductance, high quality and long service life.
  • Door safety interlock
  • Considerate safety measures

1) The whole cabinet is grounded to earth.
2) Emergency stop button is equipped with magnetic materials and is removable on both sides according to the height of the operators.
3) One magnetic switch on the door of the test cabinet. When it is charging, it is impossible to open the door of the test cabinet. Unless the operator stops or pause the test, the door of the test cabinet can be opened.
4) Manual earthing rod and Automatic earthing system

Applications:
Test Class II or Class III SPDs

Technical Specifications:

Model No

Open circuit voltage waveform (1.2/50μs)

Short circuit current Waveform (8/20μs)

Output Impedance

Impulse repetition

CWG6

1~6kV

0.5~3kA

3 pulses/minute

CWG10

1~10kV

0.5~5kA

2 pulses/minute

CWG20

1~20kV

1~10 kA

2 pulses/minute

CWG30

1~30kV

1.5~15kA

2 pulses/minute

Optional

  • Different impulse modules for your choice

Impulse module no

Output waveform

Output range

Output Impedance

Impulse repetition

JXIM-01

Combination waveform 10/700μs

1~10kV

40Ω

2 pulses/minute

Combination waveform 5/300μs

25~250A

JXIM-02

10/350μs

1~5kA

12Ω

2 pulses/minute

JXIM-03

10/1000μs

75~375A

37Ω

2 pulses/minute

JXIM-04

8/20μs

5~30kA

0.5Ω

2 pulses/minute

  • AC or DC power source for operating duty test

Coupling/Decoupling network

Standards: IEC 61000-4-5, IEC 61643-11,UL1449-2006, GB18802.1, GB/T18802.21

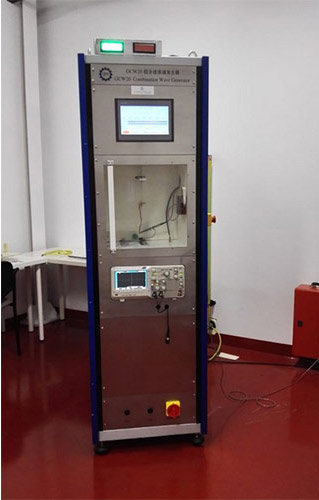

Our Projects : -
