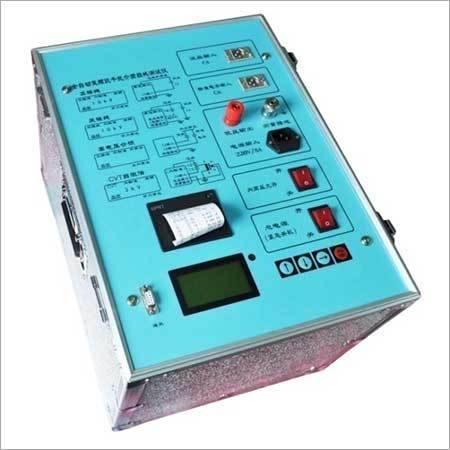

Automatic Capacitance & Tan Delta Tester

Automatic Capacitance & Tan Delta Tester
Automatic Capacitance & Tan Delta Tester
Send Inquiry
Product Code : JXJS-10
Product Description
As a prestigious supplier and manufacturer of Automatic Capacitance & Tan Delta Tester, we have carved a niche in the market. The offered testing system features combined characteristics of any premium grade capacitor, variable frequency converter, bridge and alternating current test transformer. The application of this tester can be noticed in laboratories, power substations and power generation plants where it is required to determine loss of dielectric power. The offered Automatic Capacitance & Tan Delta Tester has attained popularity in the market for its adjustable frequency level and good anti interference performance.

Features:
  • Equipped with LCD screen to view measurement information
  • Available with small printer for obtaining test result in printed form
  • Ability to identify product that needs to be tested mechanically irrespective of its inductive, resistive and capacitive conditions
Introduction

This mechanically operated testing system is designed with necessary components like premium grade capacitor, variable frequency converter, AC test transformer and bridge. This system is used for determining the precise level of dielectric loss in power substations and power generation plants. Besides this, the offered equipment is also utilized in laboratories to determine performance of bushing, surge arrester, current transformer, capacitive voltage divider, grading capacitor, load capacitor and shunt arrester. The frequency of this testing system can be modified and its anti interference arrangement deserves special mention in this context.
Features:
  • Consists of LCD screen for trouble free viewing of collected data
  • Equipped with small printer to obtain printed version of data
  • Ability to detect inductive, resistive and capacitive testing object in a self regulated manner
  • Trouble free measurement function
  • Ability to integrate with any standard grade capacitor or outer oil cup for maintaining accuracy of determining dielectric loss of oil used for insulation of its capacitor
  • Compatible with measurement electrodes for calculating the precise amount of dielectric loss of non fluid based insulation medium
  • It can mechanically identify the presence of power supplying system having 50Hz/60Hz frequency.
  • Adopts series or parallel measurement process
  • Capable of registering around hundred testing history with its user friendly computer controlled interface
  • Ability to identify outer high voltage power supplying system (with 40 Hz to 70 Hz frequency) in a mechanical manner
  • Can be utilized along with AC test transformer or AC resonant testing equipment
Technical Specifications:

Capacitance measurement range

Internal power source:3pF~60nF/10kV, 60pF~1μF/0.5kV

External power source: 3pF~1.5μF/10kV, 60pF~30μF/0.5kV

Measuring Accuracy

Capacitance: ±(1%* reading+2pF)

Dielectric loss: ±(1%·*reading+0.04%)

Minimum resolution

Capacitance:0.001pF

Dielectric loss:0.001%

Test current

5μA~5A

Internal HV power source

Output voltage:0.5~10kV; Resolution:1V;

Accuracy: ±(1.5% *reading +10V)

Maximum output current: 200mA

Test frequency:45,50,55,60,65Hz or 45/55Hz,55/65Hz, 47.5/52.5Hz; Resolution:±0.01Hz

External HV power source

Maximum test current:10kV/5A, 50Hz power frequency or variable frequency 40-70Hz

CVT LV output

Output voltage:3~50kV; Output current: 3~30A

Test time

About 15 s

Input power supply

180~270V AC, 50/60Hz

Environmental temperature

-10~50℃

Relative humidity

≤80% RH, no condensing

Dimension

430mm(L)*320mm(W)*330mm (H)

Net weight

29kgs
