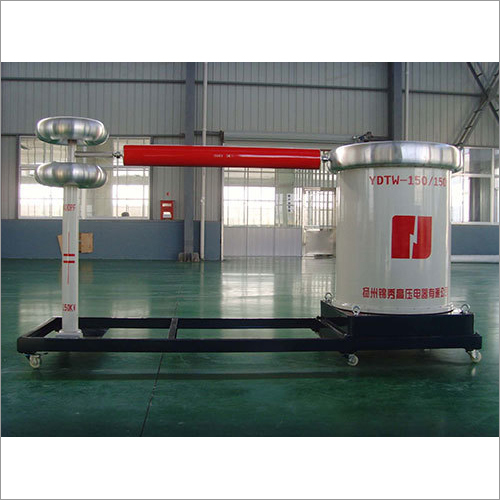

AC Test Transformer

AC Test Transformer
AC Test Transformer
Product Code : 13
Product Description

We are considered among the most reputed manufacturers and suppliers of AC Test Transformer, which is ideal to be utilized for the partial discharge test and AC voltage withstand test of various insulation materials as well as electrical apparatus such as insulators, voltage Switchgear, Circuit breaker, Reactors, Capacitors, etc. It is widely demanded in the electric power department, electrical apparatus manufacturers, universities and research institute. The possibility of stacking various transformers permits reaching very high voltages by keeping a proper floor space. We offer the AC Test Transformer at negotiable rates.

Features & Benefits:

  • Compact dimensions with minimum space requirements;
  • Over voltage protection and over current protection;
  • Protection of the system during flashover of the test objects;
  • Low PD noise level to enable sensitive PD measurement at the test object;
  • Emergency button stop at the control desk;

Application:

Partial discharge test and AC voltage endure test of below products:

  • Insulators in wet, dry or polluted conditions
  • High & Medium voltage Switchgear
  • Instrument transformer, GIS, CT, VT
  • Bushings
  • Power XLPE cables
  • Power and distribution transformers

Technical Parameters:

Model No.

Maximum Output Voltage

Rated Output Current

PD Level

(kV)

(A)

JXAC-20/100

100

0.2

<3pC

JXAC-50/100

100

0.5

<3pC

JXAC-100/200

200

0.2

<3pC

JXAC-100/200

200

0.5

<3pC

JXAC-200/200

200

1

<3pC

JXAC-50/250

250

0.2

<3pC

JXAC-250/250

250

1

<3pC

JXAC-500/250

250

2

<3pC

JXAC-60/300

300

0.2

<3pC

JXAC-150/300

300

0.5

<3pC

JXAC-300/300

300

1

<3pC

JXAC-80/400

400

0.2

<3pC

JXAC-200/400

400

0.5

<3pC

JXAC-400/400

400

1

<5pC

JXAC-100/250*2

500

0.2

<5pC

JXAC-250/250*2

500

0.5

<5pC

JXAC-500/250*2

500

1

<5pC

JXAC-300/300*2

600

0.5

<5pC

JXAC-600/300*2

600

1

<5pC

JXAC-350/350*2

700

0.5

<5pC

JXAC-700/350*2

700

1

<5pC

JXAC-800/400*2

800

1

<5pC
