Ac Resonant Test Systems With Module Type

Ac Resonant Test Systems With Module Type
Ac Resonant Test Systems With Module Type
Product Code : 02
Product Description

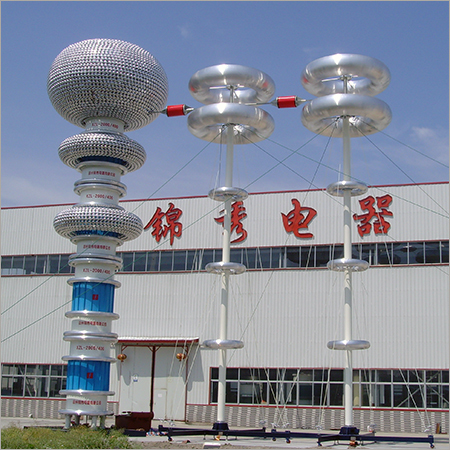

The application of Ac Resonant Test Systems With Module Type can be noticed in various production units where it is require to verify standard quality of power transformer, cables with high and medium voltage levels, high voltage electrical parts, arrestors, bushings, generators and capacitors with high voltage level. The easy to stack module of this testing system is instrumental in examining the above mentioned products. This ergonomically designed testing system can be used to check other devices under higher voltage condition.

Features and Benefits

  • Energy efficient operation for its high Q factor
  • Minimal PD noise generation rate
  • High voltage level due to surging of different modules
  • Its different Q values are useful to suit precise needs of different application procedures.
  • Different versions for parallel and single series based operation
  • Produces AC sine wave based output

Applications

  • This testing system is used for execution of
  • Partial discharging test
  • AC voltage enduring capacity of cables and their accessories
  • For checking high voltage withstanding capacity of current and voltage transformers
  • For testing bushing
  • For AC enduring capacity of capacitors, motors, generators and GIS

Technical Specification:

Model No.

Maximum Output Voltage

Output Current

PD Level

(kV)

(A)

JXXZ-2800/70

70

40

<5pC

JXXZ-340/85

85

4

<5pC

JXXZ-1000/100

100

10

<5pC

JXXZ-2250/100

100

22.5

<5pC

JXXZ-2400/120

120

20

<5pC

JXXZ-2640/220

220

12

<5pC

JXXZ-2500/250

250

10

<5pC

JXXZ-5250/350

350

15

<5pC
