AC Resonant Test System

AC Resonant Test System
AC Resonant Test System
Product Code : 16
Product Description

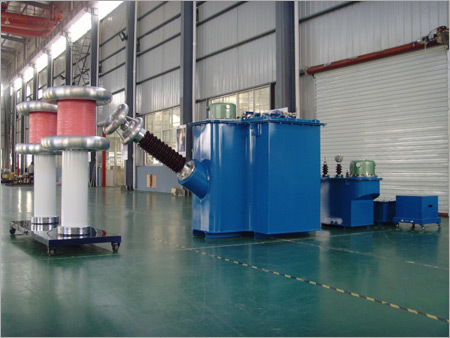

Being a master manufacturer and supplier, we are putting forth a world-class quality AC Resonant Test System to clients. This system with alterable inductance and metal tank kind is utilized for factory testing of high voltage capacitors, high & medium voltage cables, motors and generators. It uses the resonance between the inductive HV reactor and the capacitive test object of the test system so as to generate a non-stop sinusoidal high voltage. Moreover, we offer AC Resonant Test System at moderate rate in market.

Features & Benefits:

The oil-cooled HV reactor is established in a closed steel tank. The high voltage is fed outward from the steel tank through a HV bushing. It can be equipped fitted with extra voltage taps (bushings) so as to get widest testable capacitances of test objects at lower test voltages.

Low power demand due to high quality factor;

  • Higher duty cycle thanks to excellent cooling properties;
  • Low level of partial discharge < 5 pC;
  • Perfect sinusoidal test voltage for series resonance systems;
  • Low maintenance operation over the entire service life
  • Low noise level thanks to special mechanical design;

Applications:

  • For routine testing of medium and high voltage cables up to 400 kV according to IEC 60502 and IEC 60840
  • For routine testing of high voltage capacitors up to 60 kV according to IEC 60871
  • For routine and inspection testing of generators and motors up to 60 kV according to IEC 60034

Technical Specifications:

Model No.

Maximum Output Voltage

Output Current

PD Level

(kV)

(A)

JXXZ-2800/70

70

40

<5pC

JXXZ-340/85

85

4

<5pC

JXXZ-1000/100

100

10

<5pC

JXXZ-2250/100

100

22.5

<5pC

JXXZ-2400/120

120

20

<5pC

JXXZ-2640/220

220

12

<5pC

JXXZ-2500/250

250

10

<5pC

JXXZ-5250/350

350

15

<5pC

Standards:

IEC 60060, IEC 60502, IEC 60034, IEC 60870 and IEC 60840.
